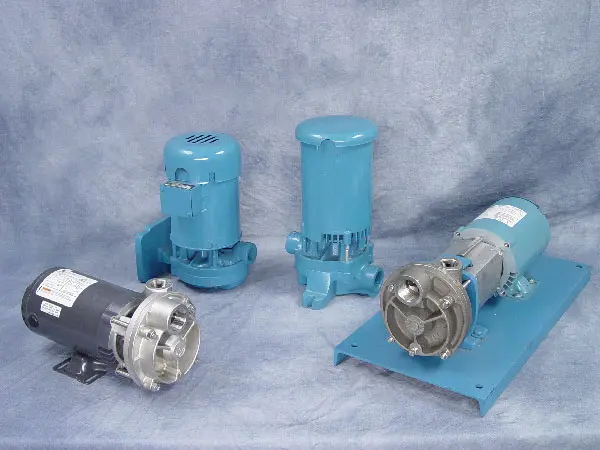

T31 and E Series Close-Coupled Regenerative Turbine Pumps

We now carry the MTH T31 E41 and E51 Series Closed Coupled Regenerative Pumps

The T31, E41, and E51 Series close-coupled regenerative turbine pumps utilize our custom manufactured dual face 3450RPM D3 motors that incorporate a 304 stainless steel shaft and heavy-duty bearing. The stainless steel shaft eliminates the necessity of a shaft sleeve, thereby reducing the parts count and simplifying OEM maintenance and servicing procedures. All D3 motors also feature a two-pole 50//60Hz rating, as well as UL and CE approvals useful for OEM’s with worldwide customers. The three-phase versions of the D3 motors feature a compact TEFC enclosure and a range from 1/3 to 3HP. The single phase D3 motors have an ODP enclosure and a range from 1/3 to 2HP. The E41 and E51 are also available in a close-coupled vertical flange mount configuration. Standard construction includes a bronze impeller, a carbon/ceramic seal, and buna elastomers.


OPTIONAL FEATURES

Construction materials of all iron, all bronze, and 316 stainless steel are available. Special seal materials, elastomers, and internal seal flush are available for temperature and fluid compatibility.
